臺式真空包裝機

                                臺式真空包裝機

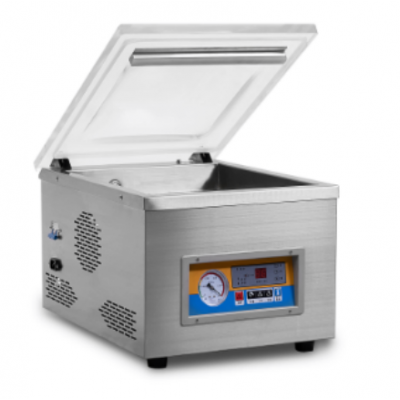

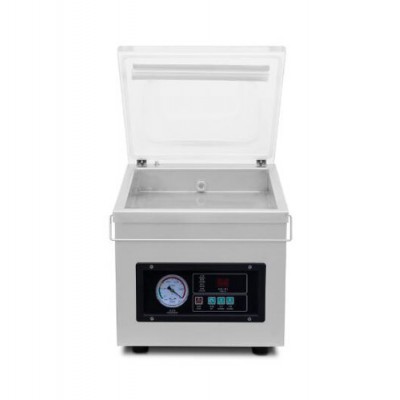

DZ-300/PD TABLE-STYLE VACUUM PACKAGING MACHINE

電源電壓(v/Hz)voltage

AC220/50

真空泵電機功率(W)Motor Power

370

熱封功率(W)Sealing Power

250

真空室zui低絕對壓強(Kpa)Ultimate Vacuum Pressure

1

每室熱封條數(pcs)No.of Sealing Bars for Each Chamber

1

真空室內尺寸(LxWxH)(mm)Chamber Dimension

380*325*50

熱封條長度Sealing Length

260/300MM

熱封寬度Sealing Width

10

真空泵排氣量(m³/h)Vacuum Pump Rate

6.5

真空室材質Material for Vacuum Chamber

不銹鋼Stainless steel  201

外形尺寸（LxWxH)(mm)Dimension

485*385*385

凈重Net Weight

37

封口條到工作室之間的距離Distance from sealing bar to chamber side

330
