珀爾帖錐板粘度計支架

采用珀爾帖原理設計，無須循環(huán)液體、適合小量樣的測試，快速控溫度。

應用
食品工業(yè)、涂料/油墨、建筑業(yè)
化妝品/制藥、化工、教學

=============================================

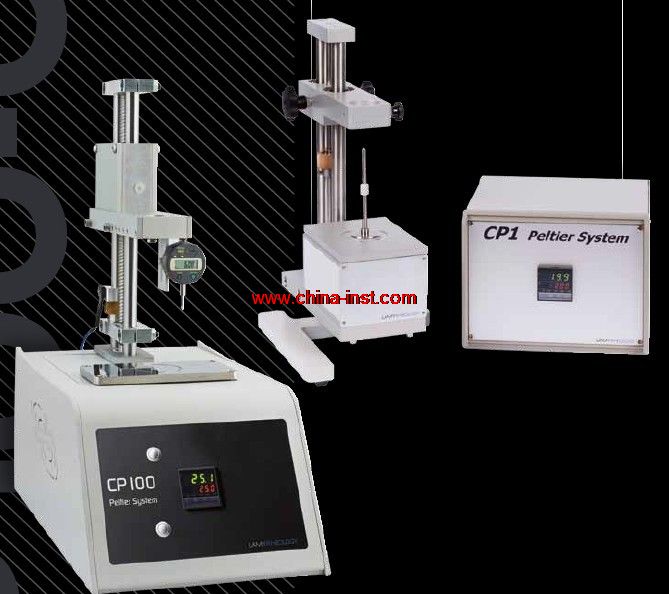

Peltier Cone-Plate Stand.

This plate stand is thermostated by  Peltier Effect without cooling fluid. It is perfectly adapted to rheological control on small volume of sample and to the quick change of temperature. This stand is using a manual up and down that enables a perfect centring of cones into the sample.

Measuring principle Aluminium plate thermostated by

Peltier E ffect (stainless steel possible)

Temperature CP100: 5 to 80 °C +/- 0.2 °C

CP1: 5 to 60 °C +/- 0.2 °C

PELTIER LIQUID OPTION: -20 to 120 °C

according associated bath temperature

(not include)

Digital display Regulation set-up and real plate

temperature

Supply voltage 90-240 VAC 50/60 Hz

Other detail CP1 and CP100 could be associated

to all viscometers and rheometers

of our range, except BLACK ONE

Dimensions (WxLxH) and weight CP1

Electronic box:

255 x 265 x 205 mm

Stand: 237 x 285 x 650 mm

16 kg

CP100

297 x 490 x 628 mm

22 kg

Name   Reference Dimensions Volume Viscosity range

Cones for RM 100 / RM 200

MK-CP 4020 424020  40 mm á 2° 0.60 ml 15 - 1 000 000 mPa.s

MK-CP 2445 422445  24 mm á 0.45° 0.030 ml 20 - 2 000 000 mPa.s

MK-CP2020 422020  20 mm á 2° 0.075 ml 100 - 8 000 000 mPa.s

MK-CP4005 424005  40 mm á 0.5° 0.150 ml 5 - 300 000 mPa.s

MK-CP 2005 422005  20 mm á 0.5° 0.018 ml 40 - 2 000 000 mPa.s

Cones for RM 300

MK-CP 2020 432020  20 mm á 2° 0.075 ml 100 - 13 000 000 mPa.s

MK-CP4020 434020  40 mm á 2° 0.60 ml 15 - 1 500 000 mPa.s

MK-CP 5020 435020  50 mm á 2° 1.15 ml 10 - 1 000 000 mPa.s

MK-CP 2005 432005  20 mm á 0.5° 0.018 ml 40 - 3 000 000 mPa.s

MK-CP 5005 435005  50 mm á 0.5° 0.30 ml 3 - 250 000 mPa.s

APPLICATIONS
Food industry Paint/Ink Building industry
Cosmetics/Pharmaceuticals Chemical industry Teaching
